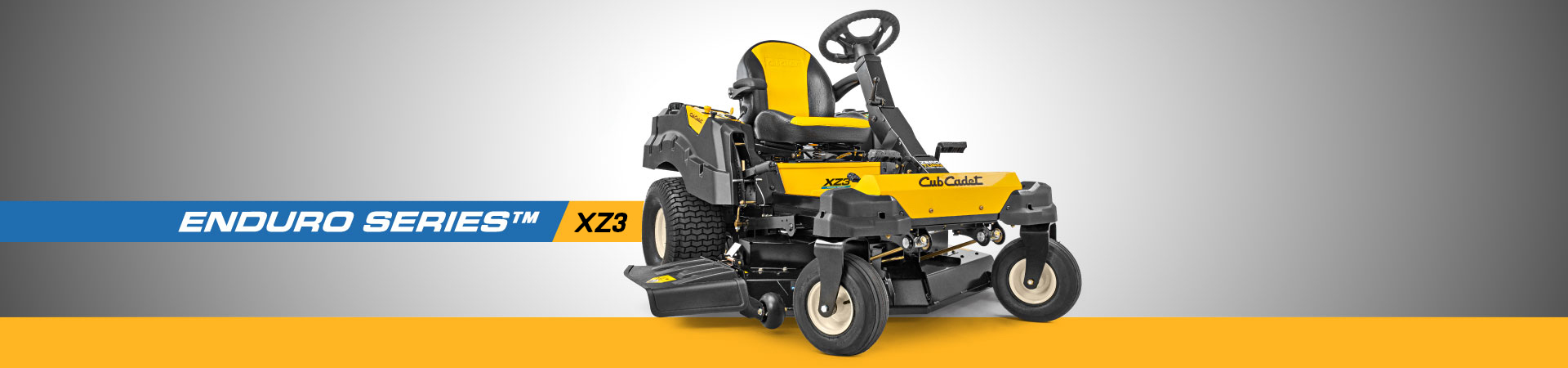

XZ3 122

  • Zero-Turn
  • Cutting width : 122 cm (48
  • Transmission : Dual Hydrostatic
  • Rated power kW/min -1 :12.3 / 2,750
  • Mowing area in m 2 /h: 11.000 m²/h
  • Grass bag capacity (l) : - / (19A70040100)

EAN: 4008423875461


  • print

XZ3 122cm / 48

The XZ3 122 has the manoeuvrability of a Zero-Turn rider, maximum operator visibility and the accuracy of a front mount deck and is fitted with a premium, professional grade Kawasaki V-Twin engine. Offering excellent power and performance, exceptionally smooth and quiet operation and reliability for a longer life and designed for professional gardeners and landowners. The Cub Cadet XZ3 122 has a heavy-duty, fabricated 48" deck with the versatility to mow around fences and trees and the front visibility maximises mowing accuracy in corners and under low obstacles. The all-wheel directional zero-turn manoeuvrability and a low centre of gravity and wide wheelbase allow the machine to glide over uneven ground and still cut a completely straight line across hills and slopes. The innovative Synchro Steer technology steering wheel controls both the large pneumatic front wheels and the independently controlled back wheels for improved control, stability and better results. Tough terrain and steep hills are no problem with this added traction and control. The adjustable steering column and seat will fit all operators and the intuitive steering wheel makes the machine easier to use providing the user with confidence and security. The adjustable high-back seat complete with arm rests provides superior support and comfort.


Engine Kawasaki OHV
Engine displacement (cm3) 726 cm³
Rated power (kW/min-1) 12.3 / 2,750
Cylinders V-TWIN dual cylinder
Fuel tank capacity(l) 17 l
Lubrication Full-pressure with spin-on oil filter


Transmission Dual Hydrostatic
Speed (max) Infinitely variable
Control Dual foot pedal control
Cruise Control


Mowing area (m2/h) 11.000 m²/h
Cutting width / Cutting height 122 cm (48 / 25 - 102 mm
Cutting options 3-in-1 Option
Number of blades 3
Deck Engagement Electric PTO
Deck height positions 15
Deck wheels 2
Wash nozzle / mulching plug Standard / Standard


Grass bag capacity (l)  - / (19A70040100)
Deflector  Standard


Front bumper / Standard / –
Turning radius (cm) Zero cm
Wheels (front/rear) 13'' x 5'' / 20'' x 10''
Wheel bearings Ball bearings
Easy entry frame Standard


Battery 12 V / 230 CCA
Hourmeter / Serviceminder Standard
Safety systems Operator presence, brake switch, deck clutch switch


Seat type High back with armrests and gel suspension
Seat adjustment Quick adjuster lever
Steering wheel Comfort
Tool box / 12 V plug Standard
Mow in reverse Standard
Battery charger 196-967-678


Noise values 93 / 103 / 105
Vibration value body (K-factor) (m/s2)  1 / 0.5 m/s²
Virbration value hand-arm (K-factor) (m/s2)  5 / 1.5 m/s²
Dimensions (L / W / H) (cm)  194 / 124 / 118
Weight net (kg)  312 kg
