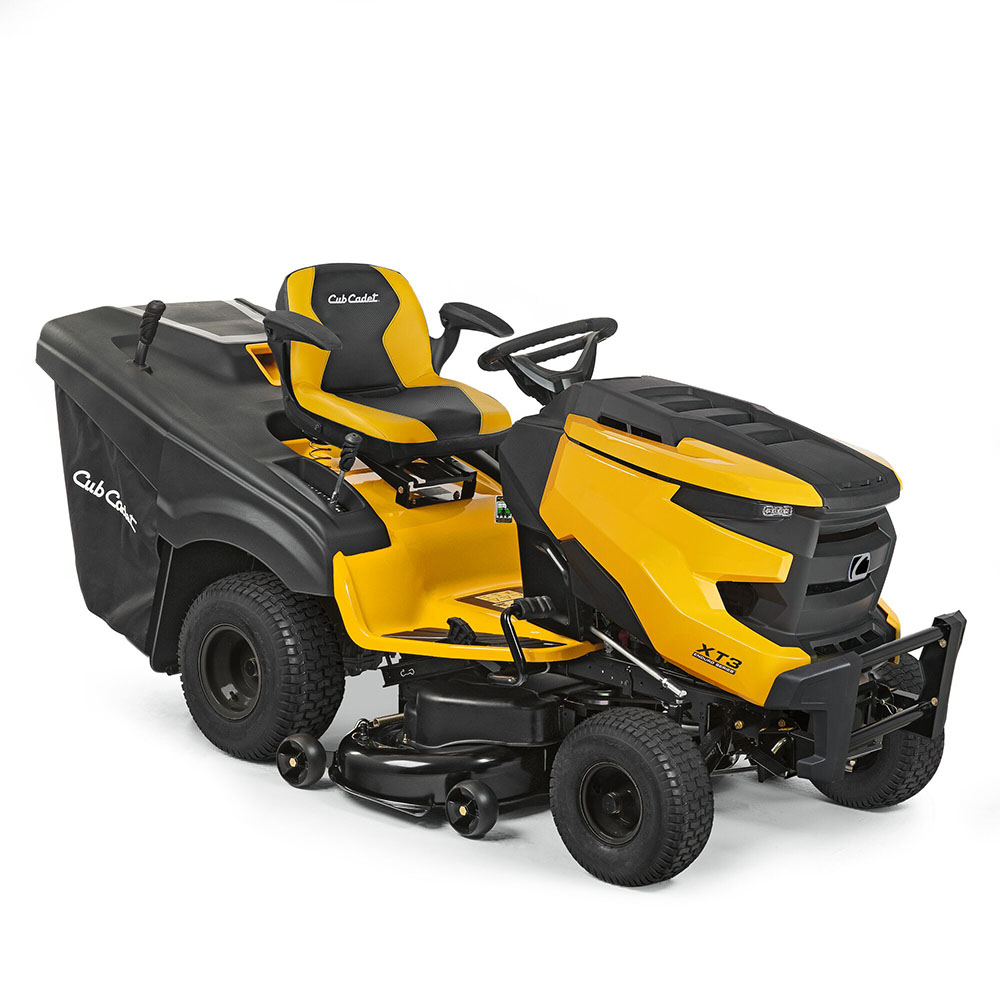

Rasnetraktor XT3 QR106 | Cub Cadet



Alternativ text

XT3 QR106

£6,999.00
details
  • LAWN TRACTORS
  • Cutting width : 106
  • Transmission : Hydrostatic, with differential lock
  • Rated power kW/min -1 : 11,8 / 2.200
  • Mowing area in m 2 /h: 8.000
  • Grass bag capacity (l) : 360 l, with Anti dust system

EAN: 4008423917499

MODEL NO : 13AFA5TR603

Find dealer
  • print


×

ULTRA-RELIABLEV-BELT DESIGN

Thanks to reduced fan belt tension and ingenious, perfect fan beltguidance without twisted fan belts, the Cub Cadet mowing deck operateswith impressive stability and endurance.The XT2 PS117i and XT3 QS137 tractors are also equipped with a weldedmowing deck, which is even sturdier and more durable (see photo on the right).

Specifications

ENGINE XT3 QR106
 Engine  Kawasaki
 Engine displacement (cm3)  726
 Rated power (kW/min-1)  11,8 / 2.200
 Cylinders  V-TWIN dual cylinder
 Fuel tank capacity(l)  11,4
DRIVE SYSTEM
 Transmission  Hydrostatic, with differential lock
 Air speed (max)  stepless (f/r)
 Control  Foot pedal control
 Cruise Control  Standard
CUTTING SYSTEM
 Mowing area (m2/h)  8.000
 Cutting width  106
 Cutting height  25–100
 Number of blades  2
 Deck Engagement  Electric PTO
 Deck height positions  12 positions
 Deck wheels  4 balls deck wheels
 Wash nozzle / mulching plug  Standard /optional (196-550-000)
DISCHARGE SYSTEM
 Grass bag capacity (l) / accessory no.  360 l, with Anti dust system/–
 Bag lever / hardtop  Rounded ergo telescopic handle / Plastic
 Bag full indicator / Grass Deflector  with blade switch-off / optional (196-552A000)
FRAME
 Front axle  Heavy-duty cast-iron
 Front bumper  Bull Bar
 Turning radius (cm)  TIGHT TURN xTREME 17
 Wheels (front/rear) (Zoll)  15 x 6 / 18 x 8,5
 Wheel bearings  Sleeve bearings
 Frame  robotically-welded
ELECTRIC
 Headlights  LED
COMFORT
 Seat type  Cut & Sew, high back rest, with arm rests
 Seat adjustment  Lever, angled, 10 slide
 Steering wheel  Ergonomic with gentle touch
 Tool box / Cub holder  Standard / Standard
 12V Plug
 Mow in reverse  Standard
 Battery charger  –
DIMENSIONS
 Noise values (dB)  83,7 / 98,9 / 100
 Vibration value body (K-factor) (m/s2)  0,2 / 0,5
 Vibration value hand-arm (K-factor) (m/s2)  2,0 / 1,0
 Dimensions (L / W / H) (cm)  267 / 110 / 118
 Weight net (kg)  268



*
